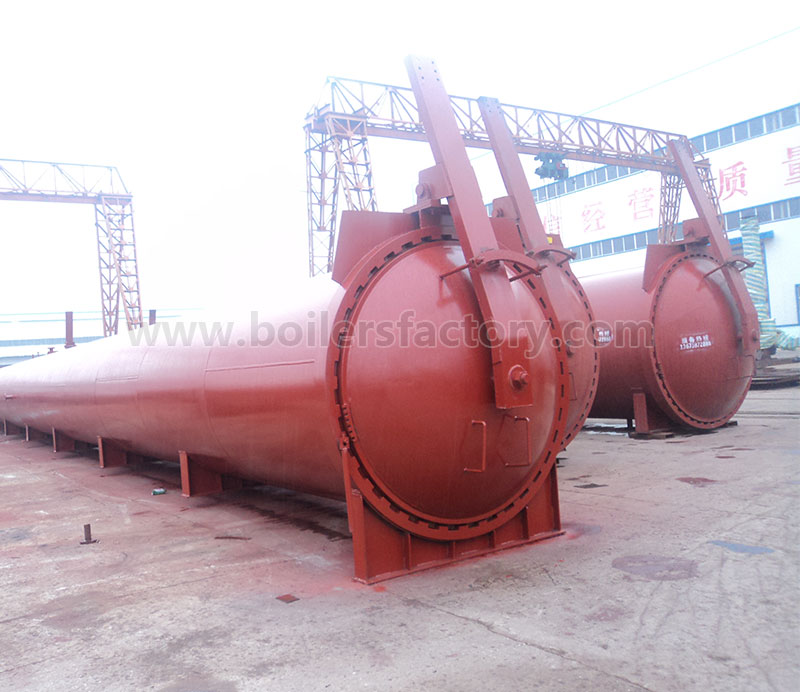

Autoclave

Length: 8-50m. (Can be customized)

Width: 1.5-3m. (Can be customized)

Design Temperature :187-225°C

Share:
  • Product Description
  • Specification
  • Delivery
  • Description

    Autoclave is the key equipment in the production of aerated concrete and autoclaved brick. Our autoclave is a principle and cylindrical device made of steel, and has the advantages of good quality and reliable performance.



    Application of Autoclave:

    The autoclave is applicable for curing the cut body under high temperature and high pressure, and is also applicable for curing the autoclaved brick under high temperature and high pressure.



    Structural Features of Autoclave:

    Our autoclave is a principle and cylindrical device made of steel, the cover is made of a whole piece of pressed 16 Mn steel board, and the flanges of cover and body adopt a whole piece of forged and processed 16 Mn steel board. The welding lines of pressed components are subjected to heat treatment and strict nondestructive test. The max design pressure reaches 1.65 Mpa.

  • ModelInternal diameter (m)Effective length  L (m)Max working pressure (Mpa)Max working temperature (℃)Designed pressure (Mpa)Designed temperature (℃)Working mediumTotal length L (m)Width W (m)Height H (m)
    FGZSS1.3-2.0 x LФ2.0Customized according to users requirements1.31951.4198Saturation steam L+1.322.9653.225
    FGZSS1.5-2.0 x LФ2.01.52011.6204
    L+1.322.9653.225
    FGZSS1.3-2.2 x LФ2.21.31941.4197
    L+1.483.2883.43
    FGZSS1.5-2.2 x LФ2.21.52011.6204
    L+1.483.2883.43
    FGZSS1.3-2.5 x LФ2.51.31951.4197
    L+1.563.2544.017
    FGZSS1.5-2.5 x LФ2.51.52011.6204
    L+1.563.2544.017
    FGZSS1.3-2.68 x LФ2.681.31941.4197
    L+1.753.284.143
    FGZSS1.5-2.68 x LФ2.681.52011.6204
    L+1.753.284.143
    FGZSS1.3-2.85 x LФ2.851.31941.4197
    L+1.813.584.493
    FGZSS1.5-2.85 x LФ2.851.52011.6204
    L+1.813.584.493
    FGZSS1.3-3.0 x LФ3.01.31941.4197
    L+1.854.5374.66
    FGZSS1.5-3.0 x LФ3.01.52011.6204
    L+1.854.5374.66
    FGZSS1.3-3.2 x LФ3.21.31941.4197
    L+1.94.745.131
    FGZSS1.5-3.2 x LФ3.21.52011.6204
    L+1.94.745.131
